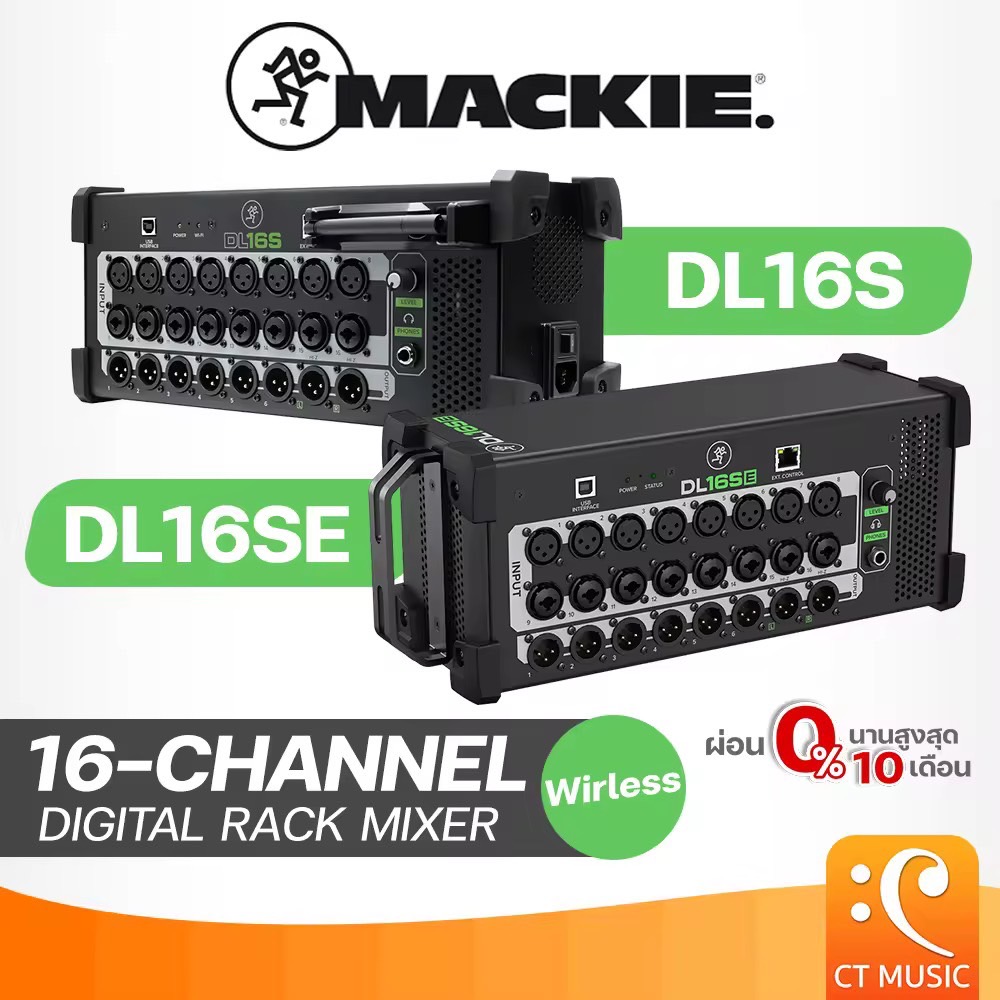

Mackie DL16S / DL16SE 16-CHANNEL WIRELESS DIGITAL MIXER มิกเซอร์ ดิจิตอล ไวร์เลส DL 16 S DL16 SE

#DL16S FULL FEATURES

• 16 Onyx+™ recallable mic preamps

• 8 fully-assignable XLR outputs plus a headphone output

• Industry-leading Master Fader control app

• 16×16 USB recording

• Ditch the snake – Place it anywhere on stage or in a rack

WIRELESS MIXING

• Complete control via iOS, Android™, macOS®, or Windows® devices

• No set FOH position – mix from anywhere

• Supports up to 20 separate devices at once

• Multiple engineers can work from a single mixer

POWERFUL PROCESSING AND SIGNAL PROCESSING

• 16 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph

• 16 stereo-linkable input channels

• 13 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph

• 6 stereo-linkable aux sends

• 6 stereo-linkable subgroups

• Main L/R bus

• 6 VCAs and 6 mute groups

• 4 stereo FX processors featuring great built-in FX like reverbs, delays, choruses, flangers, and many more with dedicated sends and returns

• Full I/O routing with A/B sources per channel

• Assignable oscillator including pink/white noise and sine waves

• Modern and Vintage options for comp/gate and EQ

MULTI-TRACK RECORDING & PLAYBACK

• 16×16 USB 2.0 audio interface for Mac or PC

• Record the show for later mixdown

• Play intermission music, backing tracks and more directly into a dedicated stereo return channel

• Perform a virtual sound check

• Amazing low-cost, high channel count studio recording solution

• Utilize Mac or PC audio plug-ins in a live environment

MASTER FADER CONTROL APP

• Intuitive and easy to master

• Fast navigation with view groups and overview

• Quick setup with tons of factory and user-definable presets

• Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users

• Quickly access channel processing, signal routing, and a massive suite of great sounding effects with presets to get you started

• Export presets, shows and complete system backups via Dropbox, email and more

• Complete offline operation

• Available on iOS, Android, macOS, and Windows

RECORD AND PRODUCE LIKE A PRO

• Waveform™ OEM professional software and plugin packages included

• The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

DL16S and DL32S are compatible with iOS 11 or later, Android OS

#DL16SE FULL SPECIFICATION

Max I/O Capacity: 16x Input / 8x Output

Number of Analog Input Channels: 16 (16 Mono / 0 Stereo)

Number of Mic Preamps: 16

Number of Analog Output Channels: 8

Mix Routing:

- 6x Stereo Aux Send

- 6x Subgroup

Groups:

- 6x VCA Group

- 6x Mute Group

Faders & Level Adjustment: No

Dynamic Processing:

- Input Channels: Compressor, Gate

- Buses, Master: Compressor, Limiter

EQ:

- Input Channels: 4-Band Parametric

- Output Buses: 4-Band Parametric 31-Band Graphic

- Graphic EQ: 31-Band

Filters:

Input Channels: High-Pass

Outputs: High-Pass Low-Pass

Solo/Mute: No

Built-In Effects:

- Stereo Reverb

- Stereo Delay

- Stereo Chorus

- Stereo Flanger

Automatic Mic Mixing: No

Analog Inputs:

- 8x XLR Balanced Input

- 8x Combo XLR-1/4″ TRS Balanced Inp

Analog Outputs:

- 8x XLR Balanced Output

= 1x 1/4″ TRS Headphone Output

Phantom Power: +48 V, Selectable On/Off (Selectable on Individual Inputs)

Digital I/O: 1x RJ45 (Wi-Fi Router, 100 Mb/s)

MIDI I/O: No

USB I/O: 1x USB-B 2.0 (Host Connection)

Wireless: No

External Display I/O: No

Max Multitrack Recording: 16 Tracks

Media Support: HDD

File Format Support: WAV

Input Power: 100 to 240 VAC, 50 / 60 Hz
